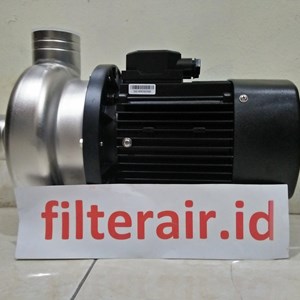

Jual Pompa Sentrifugal Stainless Steel Mapcato SS

Harga :

Rp. 100 / set

Merk :

Mapcato

Pembelian Minimal :

1 set

Pembelian Maksimal :

30 set

Pengiriman :

3 hari sejak pembayaran

Lokasi :

Jawa Timur - Surabaya

Dilihat :

177 Kali

Update Terakhir :

02-08-2018 11:59

Dapatkan Spesifikasi Harga Jual Pompa Sentrifugal Stainless Steel Mapcato SS Produk Terbaik dari cv mitra usaha mandiri Jual briket arang batok, briket batubara karbonisasi, briket shisha, karbon aktif, carbonrizer, kokas, antrasit dll

Detail Produk

Spesifikasi Pompa Sentrifugal Stainless Steel Mapcato

Jual pompa air sentrifugal stainless steel Mapcato seri SW dengan daya mulai 0,5 HP sampai dengan 3 HP, Mitra Water 0822 3333 4224

Stainless Steel Centrifugal Pump

sw-seriesFeature:
1/2HP-3HP, 2 pole high efficiency motor.
Pump body and impeller #304 stainless steel with super-tough plastic diffuser no pollution.
Aluminum motor housing, light weight and superior heat dissipation.

tiny-sw-series

Stainless Steel Impeller

Constructions:

con-1-sw-series con-2-sw-series

SW Series 50 Hz

No.
Description
Material
1
Motor casing
Aluminum/FC20
2
Pump casing
4
Bearing upper housing
FC20
04-1
Bearing lower housing
FC20
05
Impeller
SUS304
10
stator
11
Rotor & shaft
SUS410
12
Capacitor
13
Bearing (upper)
13-1
Bearing (lower)
15
Terminal box cover
ABS
17
Mechanical seal
CE/CA
19
O-Ring
NBR
20
Motor cooling fan
NYLON 66
20-1
Fan cover
STEEL
SW Series 60 Hz

No.
Description
Material
1
Motor casing
Aluminum/FC20
2
Pump casing
4
Bearing upper housing
FC20
04-1
Bearing lower housing
FC20
05
Impeller
SUS304
10
stator
11
Rotor & shaft
SUS410
12
Capacitor
13
Bearing (upper)
13-1
Bearing (lower)
15
Terminal box cover
ABS
17
Mechanical seal
CE/CA
19
O-Ring
NBR
20
Motor cooling fan
NYLON 66
20-1
Fan cover
STEEL
Performance Curve SW Series 50 Hz:

curve-50hz-sw-series

Specification
Type
Power
Discharge
Voltage
Maximum
Dimension
Weight
Head
Capacity
Capacity
HP
KW
Inch
mm
50Hz
Head(M)
Q(LPM)
H(mm)
L(mm)
W(mm)
KG
SW-50
1/2
0.4
1″
25
1PH/220-240V or3PH/380-415V

18
120
200
340
160
10
SW-100
1
0.75
1-1/2″
40
20
200
200
400
220
18
SW-200L
2
1.5
2″
50
20
400
240
420
250
20
SW-200H
2
1.5
2″
50
30
400
250
430
250
25
SW-300
3
2.2
2″
50
35
500
260
450
250
28
Performance Curve SW Series 60 Hz:

curve-60hz-sw-series

Specification
Type
Power
Discharge
Voltage
Maximum
Dimension
Weight
Head
Capacity
Capacity
HP
KW
Inch
mm
50Hz
Head(M)
Q(LPM)
H(mm)
L(mm)
W(mm)
KG
SW-50
1/2
0.4
1″
25
1PH/110-240V or3PH/220-445V

22
130
130
340
160
10
SW-100
1
0.75
1-1/2″
40
24
220
220
400
220
18
SW-200L
2
1.5
2″
50
26
400
240
420
250
20
SW-200H
2
1.5
2″
50
32
420
250
430
250
25
SW-300
3
1.5
2″
50
40
530
260
450
250
