Jual pompa sentrifugal stainless steel Mapcato seri SW dengan daya mulai 0,5 HP sampai dengan 3 HP, hubungi : Mitra Water 0822 3333 4224

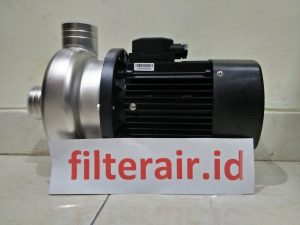

Stainless Steel Centrifugal Pump
Feature:
1/2HP-3HP, 2 pole high efficiency motor.
Pump body and impeller #304 stainless steel with super-tough plastic diffuser no pollution.
Aluminum motor housing, light weight and superior heat dissipation.
Stainless Steel Impeller
Constructions:
SW Series 50 Hz
|
No.
|
Description
|
Material
|
|
1
|
Motor casing
|
Aluminum/FC20
|
|
2
|
Pump casing
|
|
|
4
|
Bearing upper housing
|
FC20
|
|
04-1
|
Bearing lower housing
|
FC20
|
|
05
|
Impeller
|
SUS304
|
|
10
|
stator
|
|
|
11
|
Rotor & shaft
|
SUS410
|
|
12
|
Capacitor
|
|
|
13
|
Bearing (upper)
|
|
|
13-1
|
Bearing (lower)
|
|
|
15
|
Terminal box cover
|
ABS
|
|
17
|
Mechanical seal
|
CE/CA
|
|
19
|
O-Ring
|
NBR
|
|
20
|
Motor cooling fan
|
NYLON 66
|
|
20-1
|
Fan cover
|
STEEL
|
SW Series 60 Hz
|
No.
|
Description
|
Material
|
|
1
|
Motor casing
|
Aluminum/FC20
|
|
2
|
Pump casing
|
|
|
4
|
Bearing upper housing
|
FC20
|
|
04-1
|
Bearing lower housing
|
FC20
|
|
05
|
Impeller
|
SUS304
|
|
10
|
stator
|
|
|
11
|
Rotor & shaft
|
SUS410
|
|
12
|
Capacitor
|
|
|
13
|
Bearing (upper)
|
|
|
13-1
|
Bearing (lower)
|
|
|
15
|
Terminal box cover
|
ABS
|
|
17
|
Mechanical seal
|
CE/CA
|
|
19
|
O-Ring
|
NBR
|
|
20
|
Motor cooling fan
|
NYLON 66
|
|
20-1
|
Fan cover
|
STEEL
|
Performance Curve SW Series 50 Hz:
|
Specification
|
|||||||||||
|
Type
|
Power
|
Discharge
|
Voltage
|
Maximum
|
Dimension
|
Weight
|
|||||
|
Head
|
Capacity
|
Capacity
|
|||||||||
|
HP
|
KW
|
Inch
|
mm
|
50Hz
|
Head(M)
|
Q(LPM)
|
H(mm)
|
L(mm)
|
W(mm)
|
KG
|
|
|
SW-50
|
1/2
|
0.4
|
1″
|
25
|
1PH/220-240V or3PH/380-415V |
18
|
120
|
200
|
340
|
160
|
10
|
|
SW-100
|
1
|
0.75
|
1-1/2″
|
40
|
20
|
200
|
200
|
400
|
220
|
18
|
|
|
SW-200L
|
2
|
1.5
|
2″
|
50
|
20
|
400
|
240
|
420
|
250
|
20
|
|
|
SW-200H
|
2
|
1.5
|
2″
|
50
|
30
|
400
|
250
|
430
|
250
|
25
|
|
|
SW-300
|
3
|
2.2
|
2″
|
50
|
35
|
500
|
260
|
450
|
250
|
28
|
|
Performance Curve SW Series 60 Hz:
|
Specification
|
|||||||||||
|
Type
|
Power
|
Discharge
|
Voltage
|
Maximum
|
Dimension
|
Weight
|
|||||
|
Head
|
Capacity
|
Capacity
|
|||||||||
|
HP
|
KW
|
Inch
|
mm
|
50Hz
|
Head(M)
|
Q(LPM)
|
H(mm)
|
L(mm)
|
W(mm)
|
KG
|
|
|
SW-50
|
1/2
|
0.4
|
1″
|
25
|
1PH/110-240V or3PH/220-445V |
22
|
130
|
130
|
340
|
160
|
10
|
|
SW-100
|
1
|
0.75
|
1-1/2″
|
40
|
24
|
220
|
220
|
400
|
220
|
18
|
|
|
SW-200L
|
2
|
1.5
|
2″
|
50
|
26
|
400
|
240
|
420
|
250
|
20
|
|
|
SW-200H
|
2
|
1.5
|
2″
|
50
|
32
|
420
|
250
|
430
|
250
|
25
|
|
|
SW-300
|
3
|
1.5
|
2″
|
50
|
40
|
530
|
260
|
450
|
250
|
||
