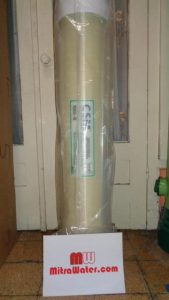

Jual membran RO 10.000 GPD CSM RE 8040 BE untuk kapasitas 38 m3 per hari. Hubungi: CV. Mitra Water 081234590404
Spesifikasi Membran RO 10.000 GPD CSM RE 8040 BE :
Permeate Flow rate : 10,500 GPD (39.7 m3/day)
Stabilized Salt Rejection : 99.7 %
Effective Membrane Area : 400 ft2 (37.2 m2)
1. The stated performance is initial data taken after 30 minutes of operation based on the following conditions;
2,000 mg/L NaCl solution at 225 psig (1.5 MPa) applied pressure, 15 % recovery, 77 oF (25 oC) and pH 6.5~7.0.
2. Minimum salt rejection is 99.4%
3. Permeate Flow rate for individual elements may vary but will be no more than 10 % below the value shown.
4. Effective membrane area may vary within 3 %.
5. All elements are vacuum sealed in a polyethylene bag containing 1.0 % SBS (Sodium bisulfite) solution and packaged individually in a cardboard box.
Product Description
Membrane Type : Thin-film Composite
Membrane Material : PA (Polyamide)
Membrane Surface Charge : Negative
Element Configuration : Spiral-Wound, FRP wrapping
Product Dimensions
A = 40 inch (1,016 mm)
B = 8.0 inch (203 mm)
C = 1.12 inch (28 mm)
Operating Limits
z Max. Pressure drop / Element 15 psi (0.1 MPa)
z Max. Pressure drop / 240” vessel 60 psi (0.42 Mpa)
z Max. Operating pressure 600 psi (4.14 MPa)
z Max. Feed flow rate 66 gpm (15.0 m3/hr)
z Min. Concentrate flow rate 16 gpm (3.6 m3/hr)
z Max. Operating temperature 113 oF (45 oC)
z Operating pH range 3.0 ~ 10.0
z CIPpH range 2.0 ~ 11.0
z Max. Turbidity 1.0 NTU
z Max. SDI (15 min) 5.0
Hub : CV. MITRA WATER, Jl. Mawar No. 43Surabaya
Telp : 031-5452872
Fax : 031-5355728,
Hp : 081234590404, 03181118112, 085733669931,
PIN BB : 5B1540B3 ,
WA : 081234590404
Email : mitrausman@yahoo.co.id
Website: http://supplierfilterair.com http://jualmesinro.com
Cabang Malang : Jl. Candi Telaga Wangi No. 48 Malang. HP : 082233334224
